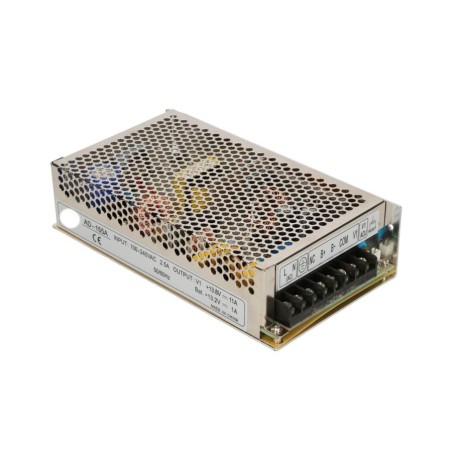

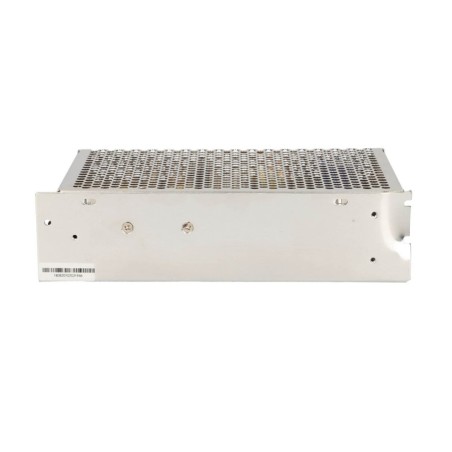

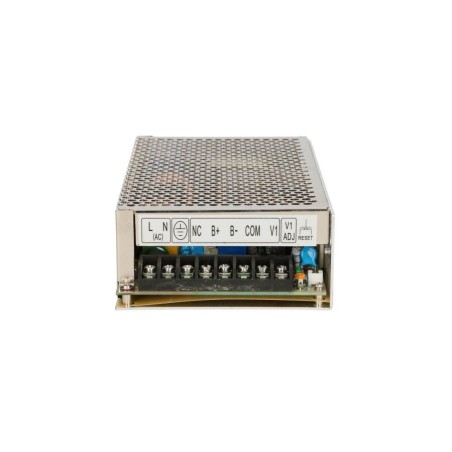

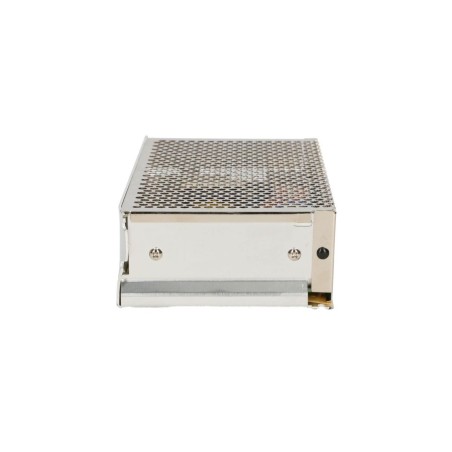

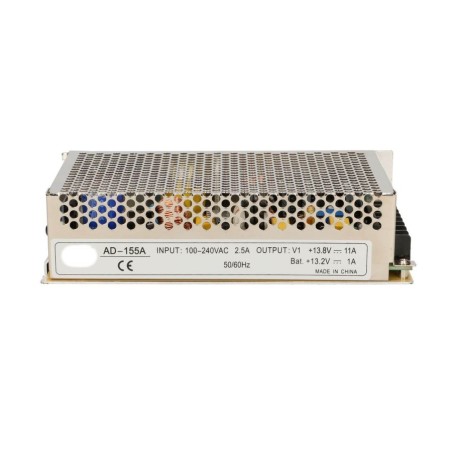

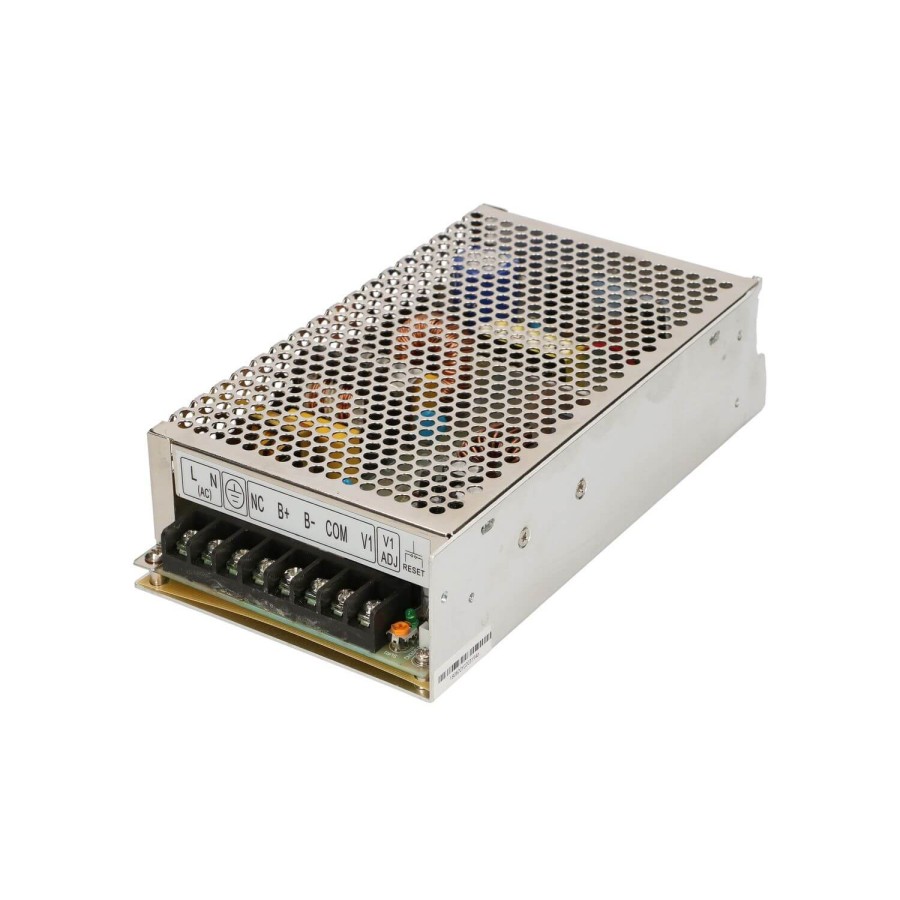

Uscita singola da 155 W con caricabatteria (funzione UPS) serie AD-155
Caratteristiche:
1. Ingresso CA universale / gamma completa
2. Protezioni: cortocircuito / sovraccarico / sovratensione
3. Protezione batteria scarica e polarità batteria
4. Raffreddamento mediante convezione dell'aria libera
5. Test di burn-in a 100% a pieno carico
6. Frequenza di commutazione fissa a PFC 67KHz, PWM 134KHz
|
MODEL
|
AD-155A
|
AD-155B
|
AD-155C
|
||||
|
OUTPUT
|
|||||||
|
Output number
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
|
DC voltage
|
13.8V
|
13.3V
|
27.6V
|
27.1V
|
54V
|
53.5V
|
|
|
Rated Current
|
10.5A
|
0.5A
|
5A
|
0.5A
|
2.7A
|
0.2A
|
|
|
Current Range
|
0~11.5A
|
0-0.5A
|
0~5.5A
|
0-0.5A
|
0-2.7A
|
0-0.5A
|
|
|
Rated Power
|
151.55W
|
151.55W
|
156.5W
|
||||
|
Ripple & Noise
|
150mVp-p
|
--------
|
150mVp-p
|
--------
|
240mVp-p
|
--------
|
|
|
Voltage Adj. Range
|
CH1:12~14.5V
|
CH1:24~29V
|
CH1:48-58V
|
||||
|
Voltage Tolerance
|
±2.0%
|
--------
|
±1.0%
|
--------
|
±1.0%
|
--------
|
|
|
Line Regulation
|
±0.5%
|
--------
|
±0.5%
|
--------
|
±0.5%
|
--------
|
|
|
Load Regulation
|
±0.5%
|
--------
|
±0.5%
|
--------
|
±0.5%
|
--------
|
|
|
Setup, Rise Time
|
1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
|
||||||
|
Hold Up Time
|
24ms/230VAC 20ms/115VAC at full load
|
||||||
|
INPUT
|
|||||||
|
Voltage Range
|
88~264VAC 47~63Hz; 124~370VDC
|
||||||
|
AC Current
|
2.5A/115VAC 1.5A/230VAC
|
||||||
|
Efficiency
|
80%
|
84%
|
84%
|
||||
|
Inrush Current
|
Cold start 20A/115VAC 40A/230VAC
|
||||||
|
Leakage Current
|
<1mA /240VAC
|
||||||
|
PROTECTION
|
|||||||
|
Over Load
|
CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power
|
||||||
|
Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse
|
|||||||
|
Over Voltage
|
CH1:15.87~18.63V
|
CH1:31.74~37.26V
|
CH1:62.1 ~ 72.9V
|
||||
|
Protection type:Shut down o/p voltage, re-power on to recover
|
|||||||
|
Battery Low
|
10V±0.8V
|
19.5V(+1.5V,-1V )
|
39V±2V
|
||||
|
ENVIRONMENT
|
|||||||
|
Working Temp.
|
-10~+60℃ (Refer to “Derating Curve”)
|
||||||
|
Working Humidity
|
20~90%RH non-condensing
|
||||||
|
Storage Temp., Humidity
|
-20~+85℃,10~95%RH
|
||||||
|
Temp. Coefficient
|
±0.03%/ ℃(0~50℃ )
|
||||||
|
Vibration
|
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes
|
||||||
|
SAFETY &EMC
|
|||||||
|
Safety Standards
|
UL60950-1, TUV EN60950-1
|
||||||
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
||||||
|
Isolation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH
|
||||||
|
EMC Emission
|
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3
|
||||||
|
EMC Immunity
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
|
||||||
|
OTHERS
|
|||||||
|
Dimension
|
199*110*50mm (L*W*H)
|
||||||
|
Weight
|
0.88Kg
|
||||||
