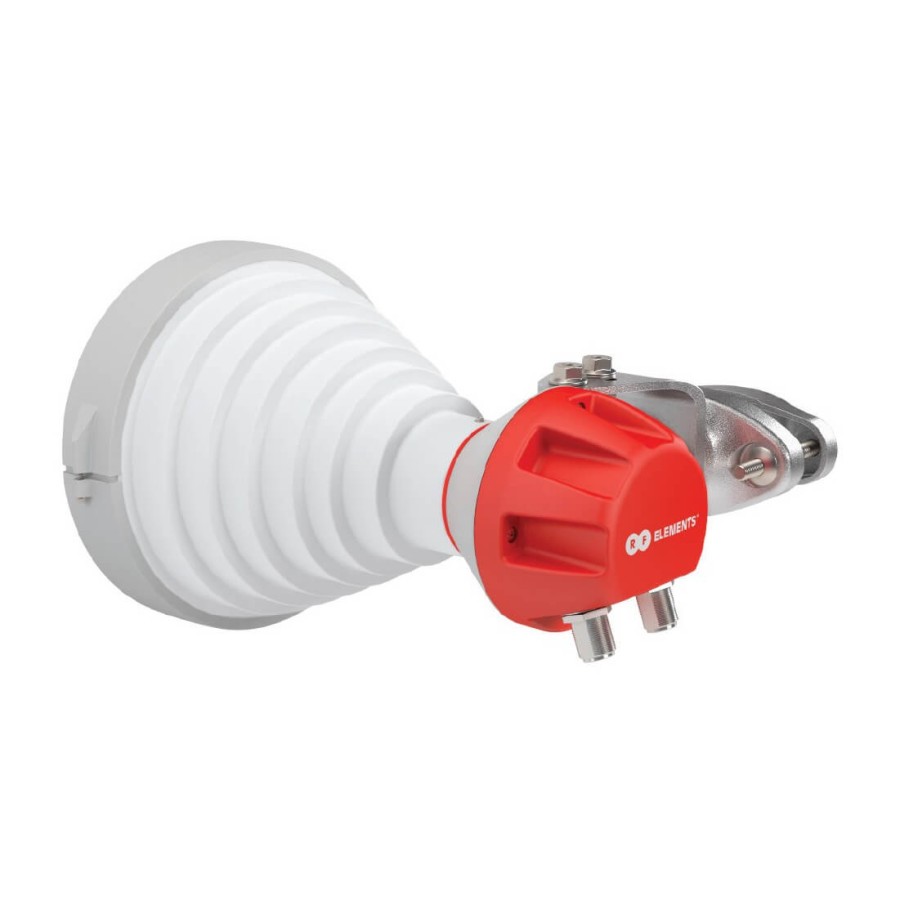

RF ELEMENTS Symmetrical Horn Carrier Class, 18.5dBi, 30 degree (SH-CC-5-30) RF-SH-CC-5-30

RF ELEMENTS Symmetrical Horn Carrier Class, 18.5dBi, 30 degree (SH-CC-5-30) RF-SH-CC-5-30

84,30
Tasse incluse

RF ELEMENTS Symmetrical Horn Carrier Class, 18.5dBi, 30 degree (SH-CC-5-30) RF-SH-CC-5-30

Quantità
Lista dei desideri
Confrontare
Non disponibile

Rf Elements
SH-CC-5-30
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

RF ELEMENTS Symmetrical Horn Carrier Class, 18.5dBi, 30 degree (SH-CC-5-30) RF-SH-CC-5-30

La serie SH-CC offre prestazioni RF uniche in un pacchetto molto compatto. Le antenne a forma di corno scalare hanno fasci simmetrici con irradazione identica sia verticale che orizzontale. Lobi laterali estremamente piccoli assicurano una notevole riduzione delle interferenze. Le antenne SH-CC sono ideali per coprire aree con clienti vicini in cui si verificano problemi di interferenze. I cluster AP ad alta densità e la co-locazione radio sono ora pratici grazie a modelli di radiazione RF unici e dimensioni compatte. L'antenna SH-CC 5-30 è dotata di 2 connettori N-femmina.

Technical data

Radio Connection

2x N Female Bulkhead Connector

Antenna Type

Horn

Materials

UV Resistant polycarbonate,

Polypropylene, Aluminium, Zinc, Stainless Steel

Enviromental

IP55

Pole Mounting Diameter

15-86 mm

Temperature

-30°C to +55°C (-22°F to +131°F)

Wind Survival

160 km/hour

Mechanical Tilt

? 25°

Weight

2.3 kg / 5.1 lbs - single unit

3.2 kg / 7.1 lbs - single unit incl. package

Performance

Frequency Range

5180 - 6100 MHz

Gain

18.5 dBi

Azimuth/Elevation Beam Width -3 dB

H 21° / V 21°

Azimuth/Elevation Beam Width -6 dB

H 30° / V 30°

Front-to-Back Ratio

41 dB

VSWR Max

1.8

Polarization

Dual Linear H + V

Impedance

50 Ohm
Rf Elements
SH-CC-5-30

Riferimenti Specifici

ean13
4250605553661
