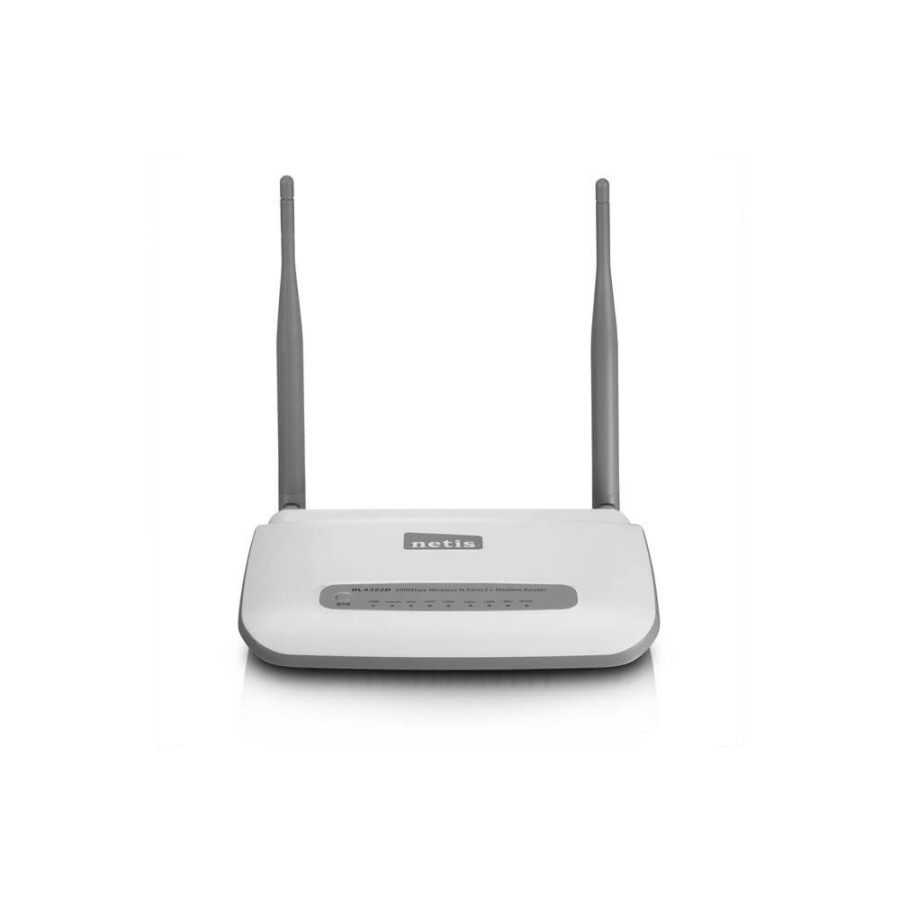

NETIS DL4322D ROUTER ADSL RJ45 WIFI N ADSL2+ ANTENNE STACCABILI
NETIS DL4322D ROUTER ADSL RJ45 WIFI N ADSL2+ ANTENNE STACCABILI
28,26
Tasse incluse
NETIS DL4322D ROUTER ADSL RJ45 WIFI N ADSL2+ ANTENNE STACCABILI
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
The netis DL4322D is a 3-in-1 device that combines the functions of a high speed ADSL2+ modem, 4-port NAT router and wireless N access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the DL4322D brings with it much higher speed than dial-up connections. It also provides some practical functions, such as Port Mapping for IPTV, Ethernet WAN, SNMP, IPv6, TR-069 and more. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming.
High speed ADSL2+ modem, 4-port NAT router and wireless N access point in one device
ADSL2/2+ standards ensuring high-speed Internet access up to 24Mbps downstream
Powerful wireless N speed up to 300Mbps
Port mapping function ensuring wonderful IPTV experience
Ethernet WAN offers additional connectivity option for Cable or Fiber modem
Built-in firewall to safeguard home network from potential Internet attacks
IPv6 supported for improved network usability and experience
4KV super lightning protection to avoid device damage caused by tough thunderstorms
5dBi detachable antennas for wide range and convenient upgrade
Easy setup wizard providing quick and hassle free installation
|
Hardware |
|
|
Ethernet Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX |
|
Interface |
1 * RJ11 ADSL Port, 4* 10/100Mbps Auto MDI/MDIX RJ45 LAN Port (Optional Ethernet WAN for LAN4) |
|
LED |
PWR, Internet, ADSL, LAN4, LAN3, LAN2, LAN1, WPS, WLAN |
|
Power Supply |
DC 12V/500mA(Output) |
|
Button |
WPS, Default, Power ON/OFF |
|
Dimensions (L x W x H ) |
183*125.2*30.72 mm |
|
Software |
|
|
ADSL Version |
ADSL, ADSL2, ADSL2+ |
|
Data Rate |
Downstream: Up to 24Mbps Upstream: Up to 1Mbps |
|
ATM/PPP Protocol |
ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225) |
|
Main Feature |
DHCP, DHCP Relay NAT, Static Routing VPN (PPTP, L2TP, IPsec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP Snooping V1/V2 Virtual Server, DMZ, ACL (Access Control List) UPnP IPv6 |
|
Management |
Web Based Configuration (HTTP), Remote management, Telnet management, command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools |
|
Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Frequency Range |
2.4-2.4835GHz |
|
Wireless Speed |
Up to 300Mbps |
|
Wireless Security |
WEP 64/128bits, WPA(TKIP/AES)/WPA2(TKIP/AES)/WPA2 Mixed, 802.1x Authentication Wireless MAC Filtering |
|
Wireless Security Power |
20dBm |
|
Antenna Type |
2* 5dBi Detachable Antennas, SMA Connector |
|
Others |
|
|
Certification |
CE FCC |
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
|
Package |
1 * DL4322D 1 * 12V/500mA Power Adapter 2 * RJ11 Telephone Cable 1 * RJ45 Ethernet Cable 1 * ADSL Splitter 1 * Quick Installation Guide(Multilingual) |
